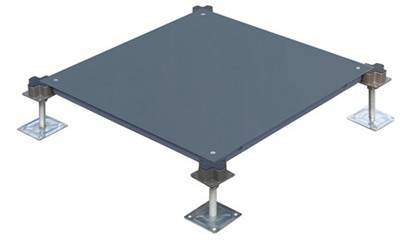

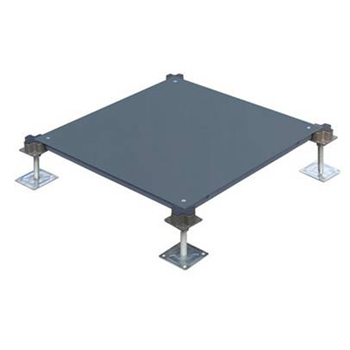

OA, BARE Access Floor - Not Finish

All-steel structure, nice loading capacity. Excellent fire resistance ability. Good dimension accuracy, panel can be interchangeable

Chi tiết sản phẩm

+ Feature:

- All-steel structure, nice loading capacity

- Excellent fire resistance ability

- Good dimension accuracy, panel can be interchangeable

+ Application:

- 5A class office building, computer room, and occasion which require overhead and large wires. Even eligible for remaking reface for the wires in old office building.

+ Performance Selection Chart OA500

International	Size mm	Concentrated N	Impact Load N	Ultimate Load N	Uniform Load N/m²	Rolling Load 10 Time	Rolling Load 10000Time	Remarks
OA 668	500x500x28	≥ 2990	≥670	≥8890	≥12500	2215	1548	Standard CISCA
OA 800	500x500x28	≥ 3596	≥670	≥10799	≥19796	2959	2215
OA 1000	500x500x28	≥4498	≥670	≥13494	≥23294	3596	2959

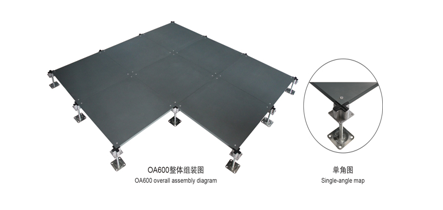

+ Performance Selection Chart OA600

International	Size mm	Concentrated N	Impact Load N	Ultimate Load N	Uniform Load N/m²	Rolling Load 10 Time	Rolling Load 10000Time	Remarks
SC/FS 668	600x600x35	≥ 2990	≥670	≥8890	≥12500	2215	1548	OA Standard CISCA
SC/FS 800	600x600x35	≥ 3596	≥670	≥10799	≥19796	2959	2215
SC/FS 1000	600x600x35	≥4498	≥670	≥13494	≥23294	3596	2959
SC/FS 1250	600x600x35	≥5595	≥670	≥16797	≥33084	4498	3596
SC/FS 1500	600x600x35	≥6693	≥670	≥20090	≥42581	5595	4498
SC/FS 2000	600x600x35	≥8898	≥670	≥26685	≥49784	6693	5595
SC/FS 2500	600x600x35	≥11093	≥670	≥33290	≥58280	8898	6693
